Procedure to write YRW801-M Rom of the moonsound on 27C160 chip

Par alali.ahmed.t

Master (195)

Portrait de alali.ahmed.t

08-11-2022, 05:07

Does any one has the procedure to do that? I have built a Wozblaster and I need the procedure to write the complete file that is about 2MB in size into 27C160 chip. I have the complete file, I found other procedures where you write the files in parts but the file I have is a complete 2MB.

!login ou Inscrivez-vous pour poster

Par alali.ahmed.t

Master (195)

Portrait de alali.ahmed.t

08-11-2022, 05:25

I have my way of dividing the complete 2MB moonsound file into 4 X 512KB parts and then upload part by part into the 4 banks of the 27C160. I will give that a try and see how things go.

Par Pencioner

Scribe (1611)

Portrait de Pencioner

08-11-2022, 09:07

that should work. it is the same as you would do with use of an adapter

Par alali.ahmed.t

Master (195)

Portrait de alali.ahmed.t

08-11-2022, 23:13

Pencioner wrote:

that should work. it is the same as you would do with use of an adapter

Thank you for the link, very useful.

Par Wierzbowsky

Guardian (3649)

Portrait de Wierzbowsky

09-11-2022, 14:29

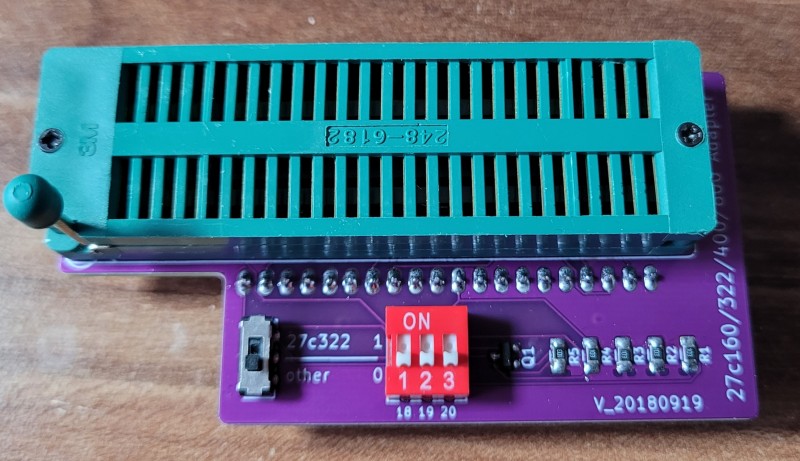

I have the boards and all parts for this adapter except for the ZIF socket. These are leftovers from building an adapter for my own needs. Please contact me if interested. The socket is expensive, so I ordered only one piece from Poland.

I also have those 2mb EPROM chips - leftovers from the time when I assembled a Wozblaster.

Par crisag

Expert (122)

Portrait de crisag

09-11-2022, 21:44

I got a few 48P ZIFs from AliExpress recently.

Par alali.ahmed.t

Master (195)

Portrait de alali.ahmed.t

09-11-2022, 23:52

Wierzbowsky wrote:

I have the boards and all parts for this adapter except for the ZIF socket. These are leftovers from building an adapter for my own needs. Please contact me if interested. The socket is expensive, so I ordered only one piece from Poland.

I also have those 2mb EPROM chips - leftovers from the time when I assembled a Wozblaster.

Thanx a lot., I got one but it was not good to be used with my TL866 programmer, I had to return it and ordered another one similar to the you posted. I should check next time in the forum because I may save some money that way :)

Par alali.ahmed.t

Master (195)

Portrait de alali.ahmed.t

17-02-2023, 23:41

Wierzbowsky wrote:

I have the boards and all parts for this adapter except for the ZIF socket. These are leftovers from building an adapter for my own needs. Please contact me if interested. The socket is expensive, so I ordered only one piece from Poland.

I also have those 2mb EPROM chips - leftovers from the time when I assembled a Wozblaster.

Alexey,

When you set A18/A19 = 1/1 .. is that for bank 1 or 4 for 27C160? I am confused because of the pictures I see online for the is adapter.

Par Wierzbowsky

Guardian (3649)

Portrait de Wierzbowsky

18-02-2023, 10:43

I haven't used this adspter yet, so I can't confirm. The readme file should have enough info.
